*O/E Converter : SPA-2_650nm
(Max Core = 1mm, Max NA = 0.5, 1,000V/W@658nm, DC to 1GHz)
 |
Features: |
[1] Specifications
[2] Lens system
[3] Spectral Sensitivity (by calculation)
[4] Step Response and Frequency Characteristics (Example)
[5] Responding characteristics of the PD in a range of convertible frequency bandwidth
[6] options
[1] Specifications
Item \ Model Name |
SPA-2_650nm |
| Reference Wavelength | 658nm |
| Receivable Wavelength Range | 400 to 1000nm |
| Maximum Core Diameter | φ1.0mm |
| Acceptable NA. Range | 0.5 or less |
| Optical Input Connector (Standard) | FC receptacle |
| Photodetector Type | Si PIN PD |
| Active diameter of Photodetector | φ0.8mm |
| Sensitivity (Conversion Gain at Reference Wavelength) |
1,000V/W |
| Output Saturation Optical Input Power (Reference Wavelength) |
-4dBm |
| Convertible Frequency Bandwidth | DC to 1.0GHz |
| Output Noise Level | 2.0mVrms or less |
| Noise Equivalent Optical Power at Reference Wavelength | -27.3dBm or less |
| Electrical Output Connector (Standard) |
BNC plug |
| Output Impedance | 50 ohms |
| Output Offset Voltage | 0.5mV or less |
| DC Power Connector | LEMO 0S-4P |
| Supply Voltage | DC+15V |
| Supply Current | +150mA |
| Dimensions [mm] | 103 x 44 x 21 |
| Weight |
Approx. 130g |
[2] Lens System
 |
SPA-2 Maximum Acceptable Diameter = 1.0mm |
[3] Spectral Sensitivity (by calculation)
SPA-2_650nm
Reference wavelength: 658nm
Maximum sensitivity: at 770nm
 |
Sensitivities vs wavelength
|
[4] Step Response and Frequency Characteristics (Example)
SPA-2_650nm
 |
 |

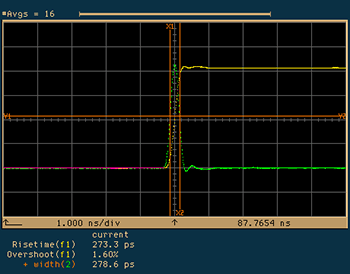

| Step Response of SPA-2_650nm Rise time: 360ps, Overshoot : 2.87% |
Frequency Characteristics of SPA-2_650nm -3dB (Electrical) Frequency : Approx. 1.0GHz |
