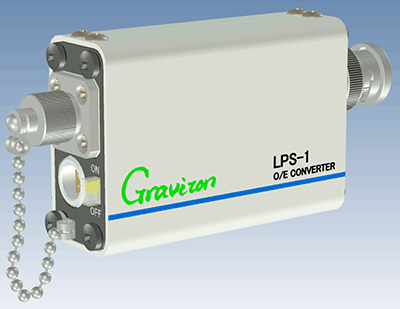

*O/E Converter : LPS-1_20KV/W
(Max Core = 0.08mm, Max NA = 0.2, 20KV/W@1310nm, DC to 100MHz)
 |
Features: |
[1] Specifications
[2] Spectral Sensitivity (by calculation)
[3] Step Response and Frequency Characteristics (Example)
[4] options
[1] Specifications
Item \ Model Name |
LPS-1_20KV/W |
| Reference Wavelength | 1310nm |
| Receivable Wavelength Range | 900 to 1650nm |
| Maximum Core Diameter | φ0.08mm |
| Acceptable NA. Range | 0.2 or less |
| Optical Input Connector (Standard) | FC receptacle |
| Photodetector Type | InGaAs PIN PD |
| Active diameter of Photodetector | φ0.08mm |
| Sensitivity (Conversion Gain at Reference Wavelength) |
20,000V/W |
| Output Saturation Optical Input Power (Reference Wavelength) |
-11.2dBm |
| Convertible Frequency Bandwidth | DC to 100MHz |
| Output Noise Level | 1.0mVrms or less |
| Noise Equivalent Optical Power at Reference Wavelength | -43dBm or less |
| Electrical Output Connector (Standard) |
BNC plug |
| Output Impedance | 50 ohms |
| Output Offset Voltage | 0.5mV or less |
| DC Power Connector | LEMO 0S-4P |
| Supply Voltage | DC±15V |
| Supply Current | +80mA/-50mA |
| Dimensions [mm] | 93 x 44 x 21 |
| Weight |
Approx. 110g |

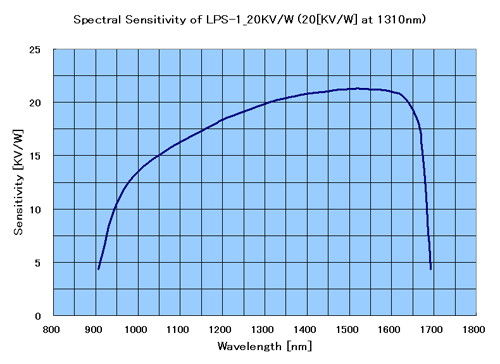

[2] Spectral Sensitivity (by calculation)
LPS-1_20KV/W
Reference wavelength: 1,310nm
Maximum sensitivity: at 1,540nm
 |
Sensitivities vs wavelength
|
[3] Step Response and Frequency Characteristics (Example)
LPS-1_20KV/W
 |
 |

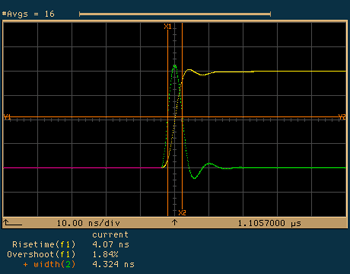

| Step Response of LPS-1_20KV/W Rise time: 4.07ns, Overshoot : 1.84% |

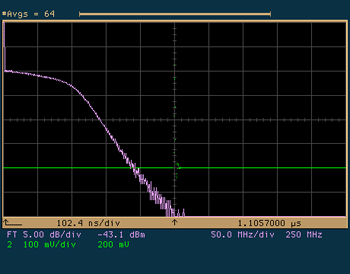

Frequency Characteristics of LPS-1_20KV/W -3dB (Electrical) Frequency : Approx. 100MHz |
