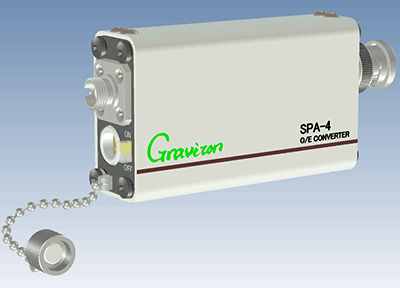

*O/E Converter : SPA-4
(Max Core = 0.25mm, Max NA = 0.5, 300V/W@850nm, DC to 3GHz)
 |
Features: |
[1] Specifications
[2] Lens system
[3] Spectral Sensitivity (by calculation)
[4] Step Response and Frequency Characteristics (Example)
[5] Responding characteristics of the PD in a range of convertible frequency bandwidth
[6] options
[1] Specifications
Item \ Model Name |
SPA-4 |
| Reference Wavelength | 850nm |
| Receivable Wavelength Range | 380 to 950nm |
| Maximum Core Diameter | φ0.25mm |
| Acceptable NA. Range | 0.5 or less |
| Optical Input Connector (Standard) | FC receptacle |
| Photodetector Type | Si PIN PD |
| Active diameter of Photodetector | φ0.2mm |
| Sensitivity (Conversion Gain at Reference Wavelength) |
300V/W |
| Output Saturation Optical Input Power (Reference Wavelength) |
+1dBm |
| Convertible Frequency Bandwidth | DC to 3.0GHz |
| Output Noise Level | 1.8mVrms or less |
| Noise Equivalent Optical Power at Reference Wavelength | -22.4dBm or less |
| Electrical Output Connector (Standard) |
BNC plug |
| Output Impedance | 50 ohms |
| Output Offset Voltage | 0.5mV or less |
| DC Power Connector | LEMO 0S-4P |
| Supply Voltage | DC±15V |
| Supply Current | +150mA/-50mA |
| Dimensions [mm] | 103 x 44 x 21 |
| Weight |
Approx. 130g |
[2] Lens System
 |
SPA-4 Maximum Acceptable Diameter = 0.25mm |
[3] Spectral Sensitivity (by calculation)
SPA-4
Reference wavelength: 850nm
Maximum sensitivity: at 700nm
 |
Sensitivities vs wavelength
|
[4] Step Response and Frequency Characteristics (Example)
SPA-4
 |
 |

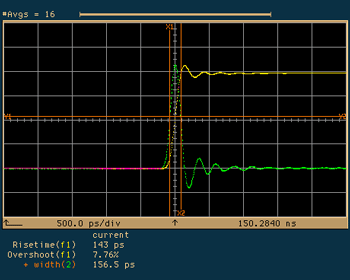

| Step Response of SPA-4 Rise time: 143ps, Overshoot : 7.76% |

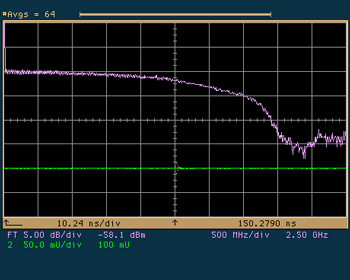

Frequency Characteristics of SPA-4 -3dB (Electrical) Frequency : Approx. 3.0GHz |
